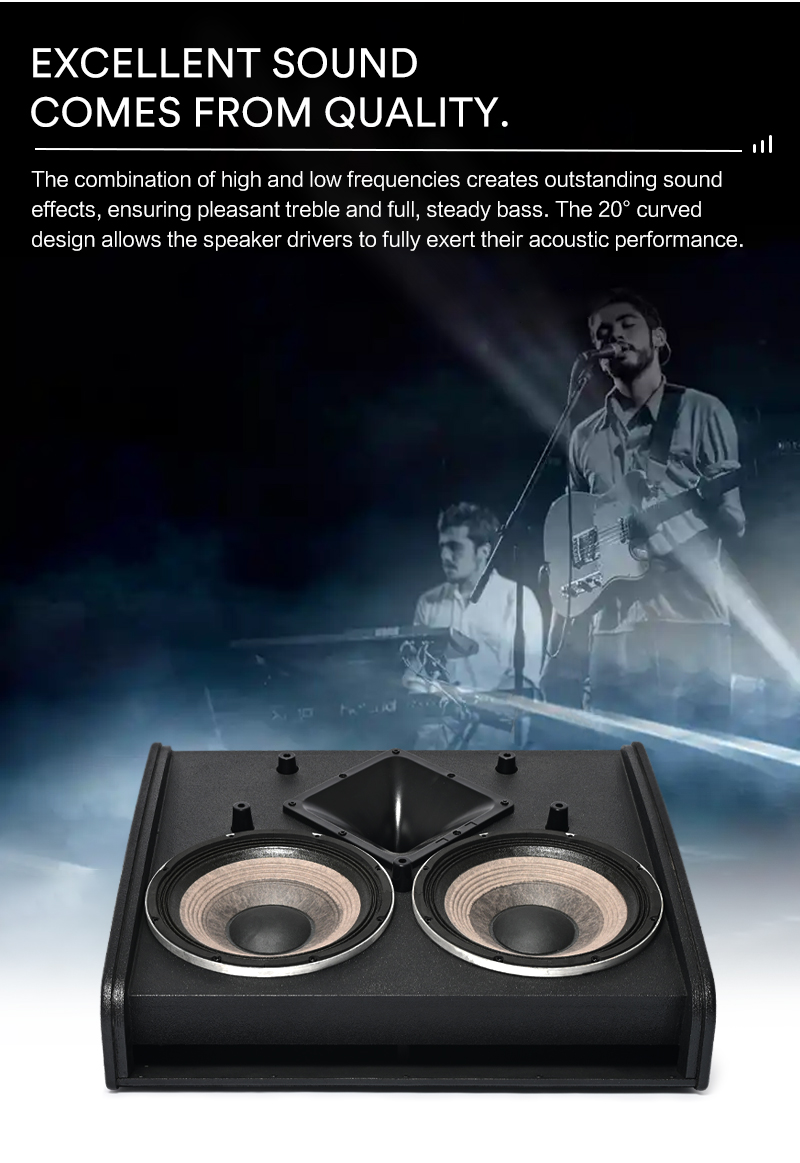

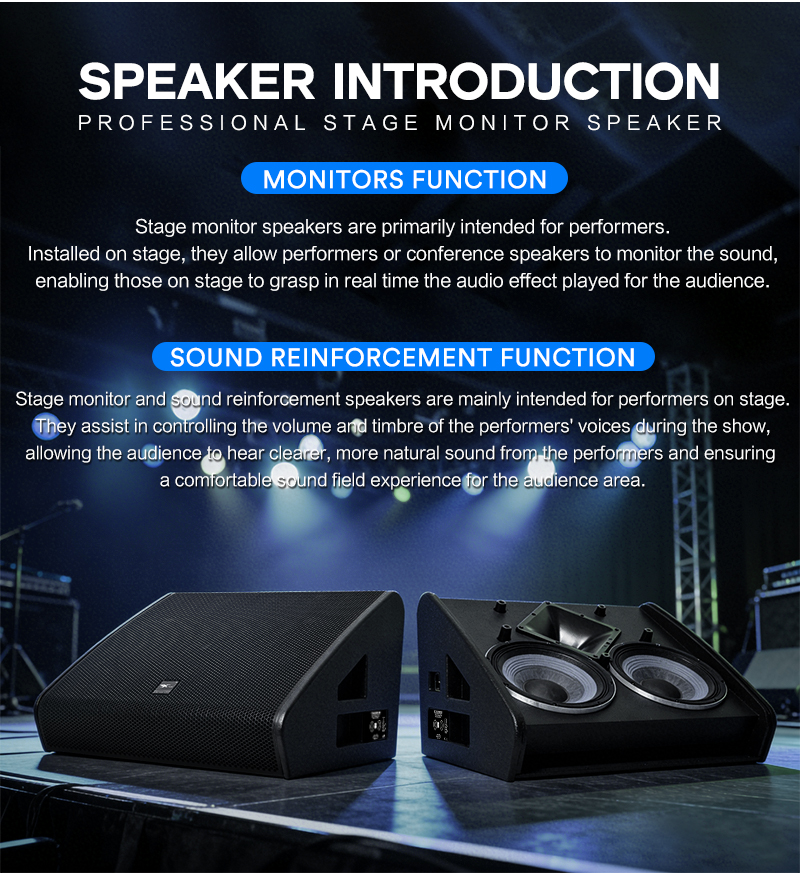

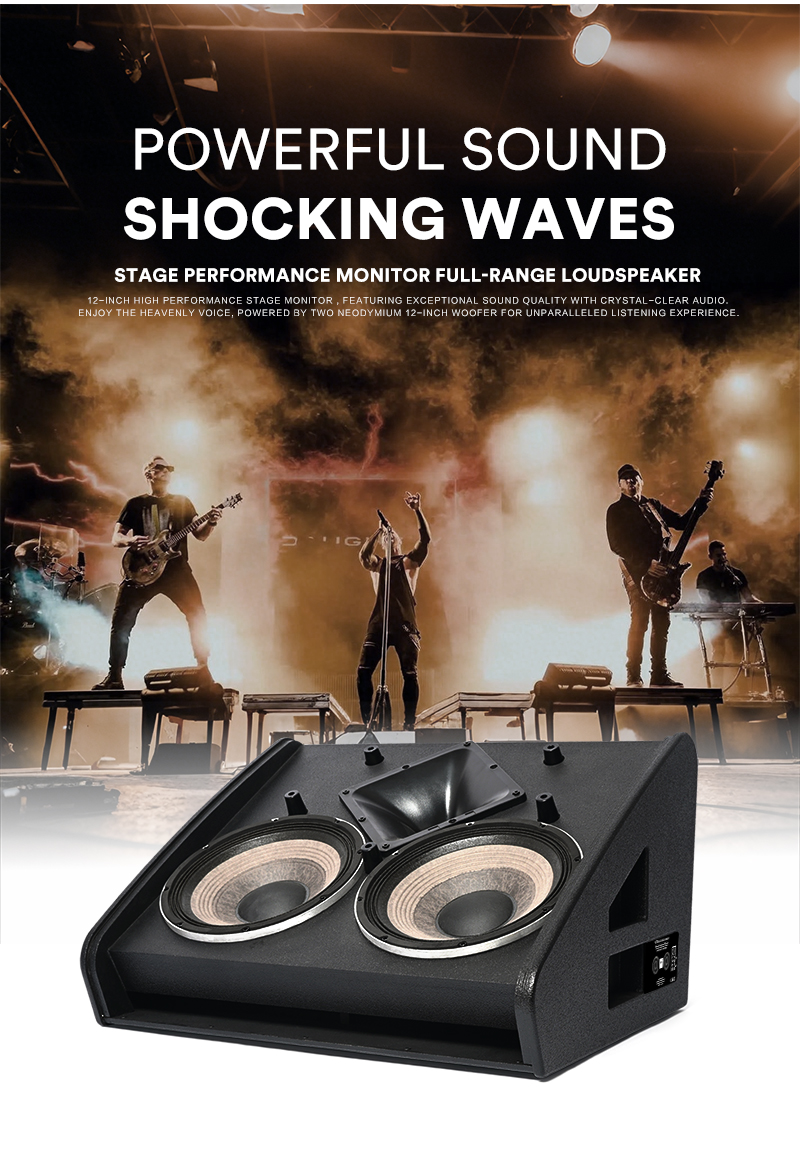

Dual 12-inch Professional Stage Monitor
M22 is a dual-12” professional stage monitors, both featuring high-perfor mance differential drive woofers and the large-format compression driver. The option of Dual-Channel (Bi-Amp) or Single-Channel (Passive) operation comes standard, allowing the user to choose the right option for the application with no compromise in output power or performance.
Key Features:
• Elegant, low profile, compact design suitable for touring and high profile performence applications

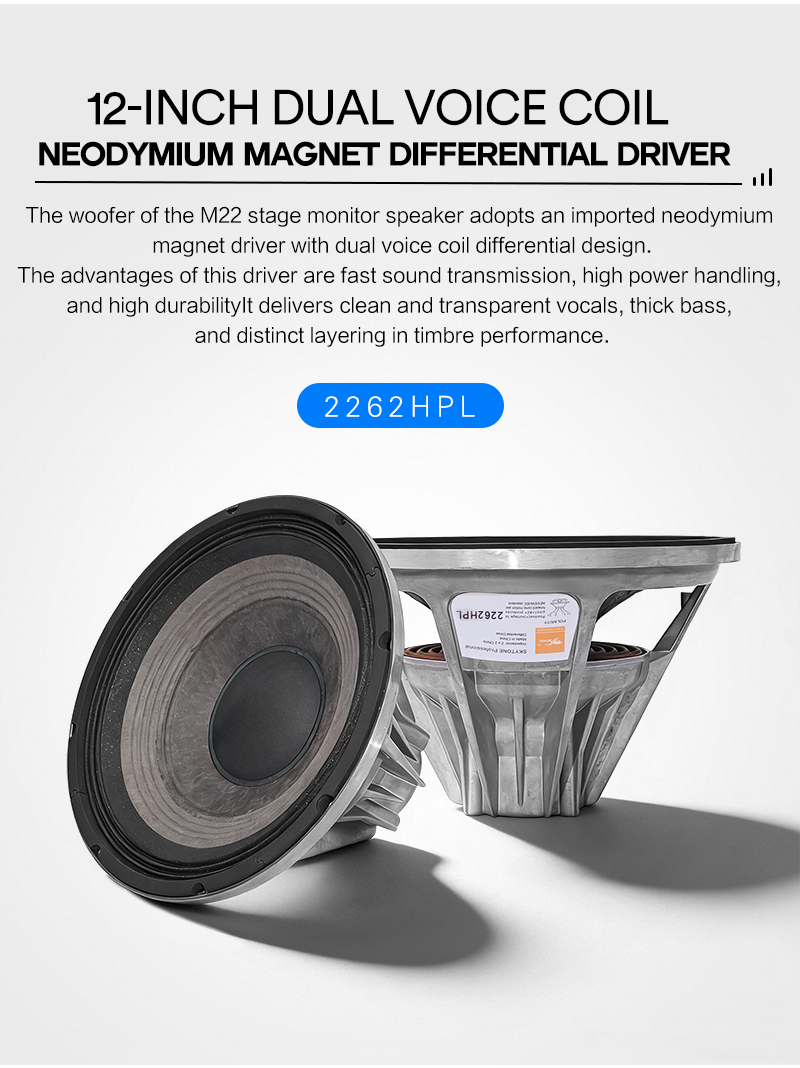

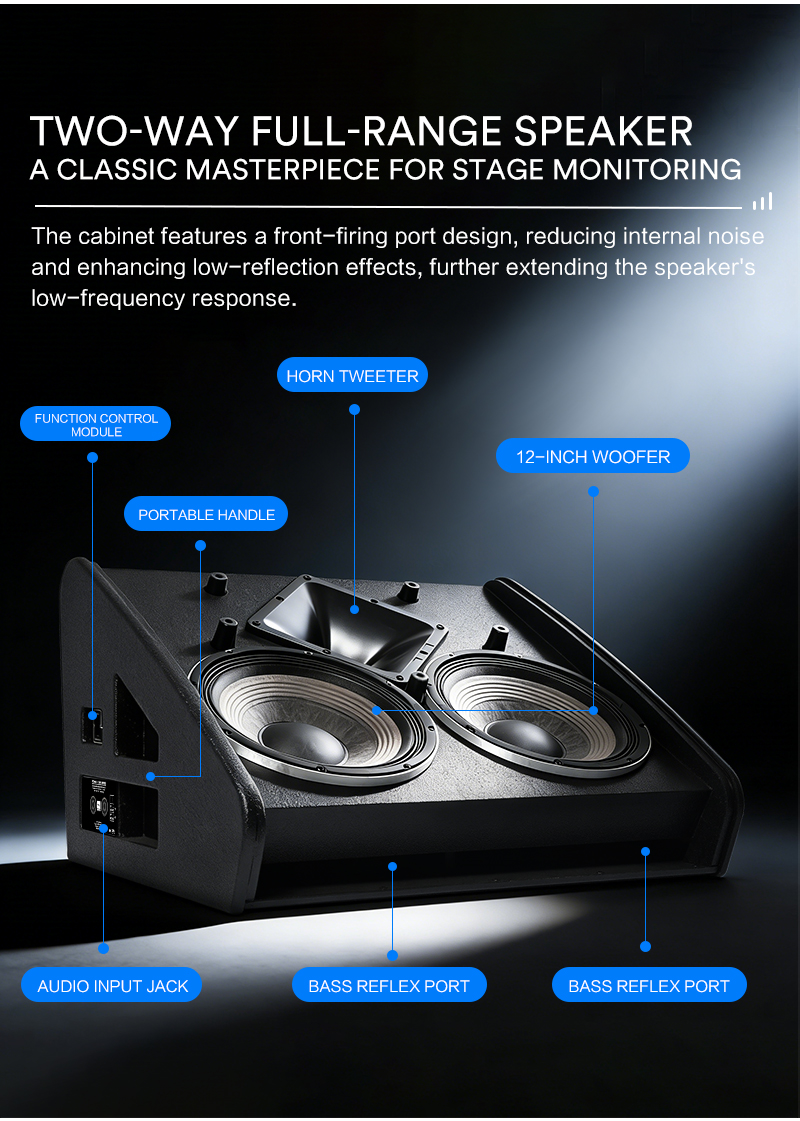

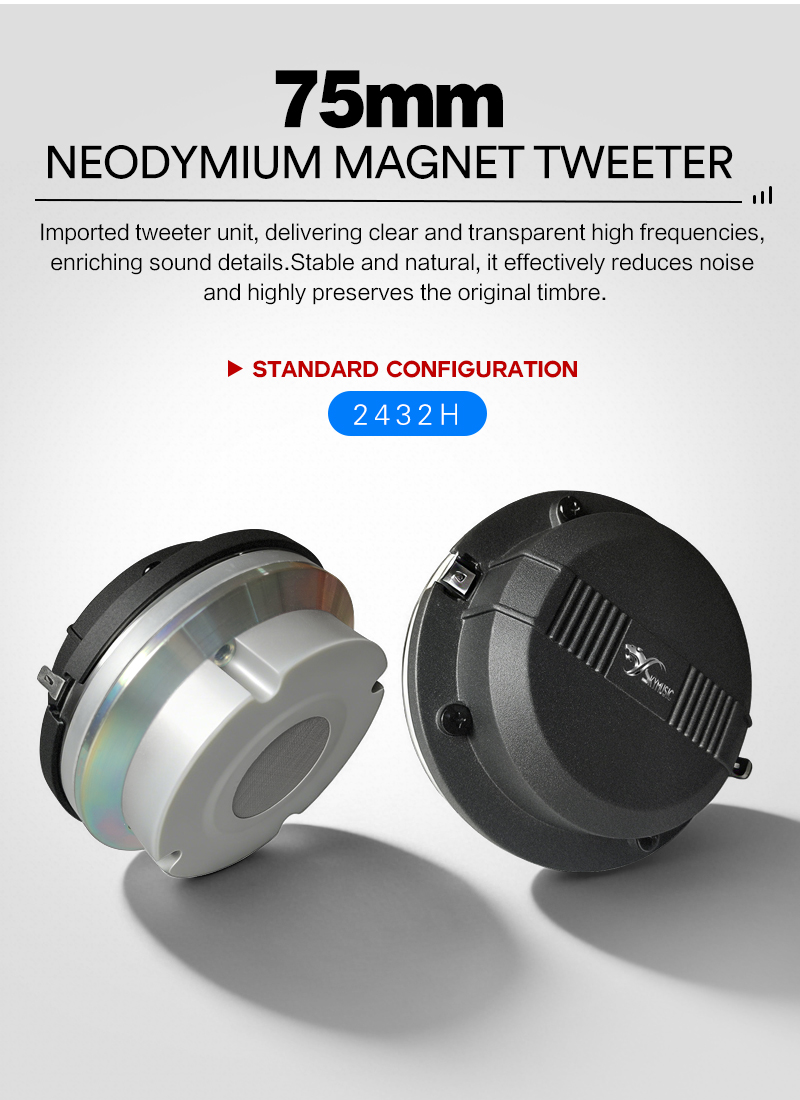

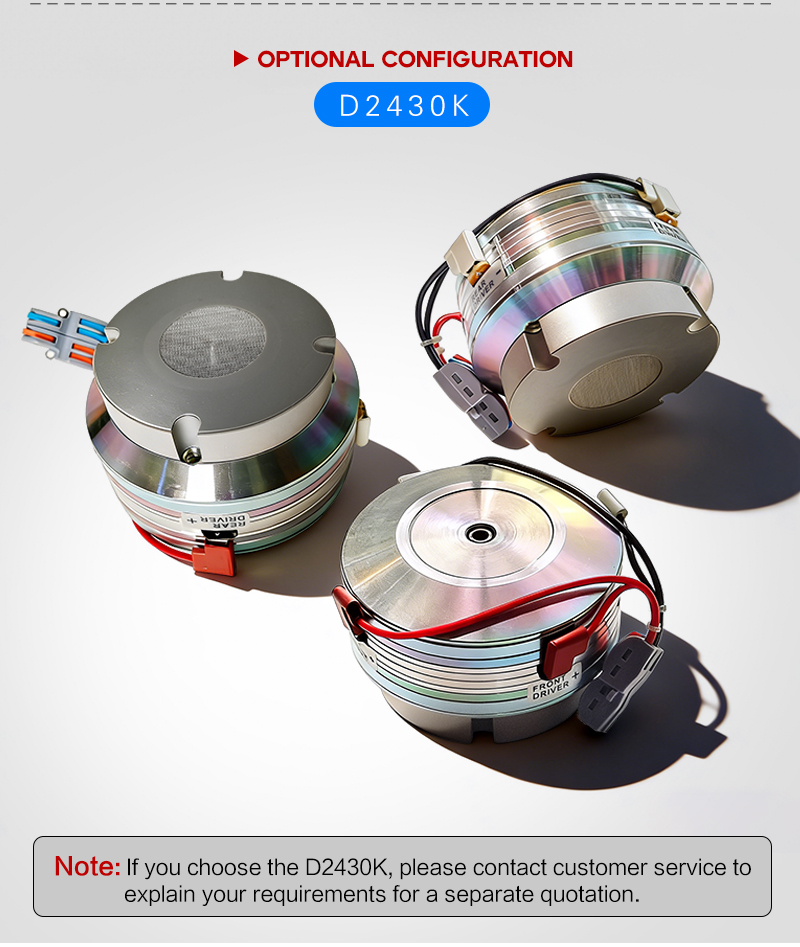

• State of the art drivers, including 2262HPL 12 inch dual voice coil Differential Drive woofer and 2432H 3 inch neodymium compression driver

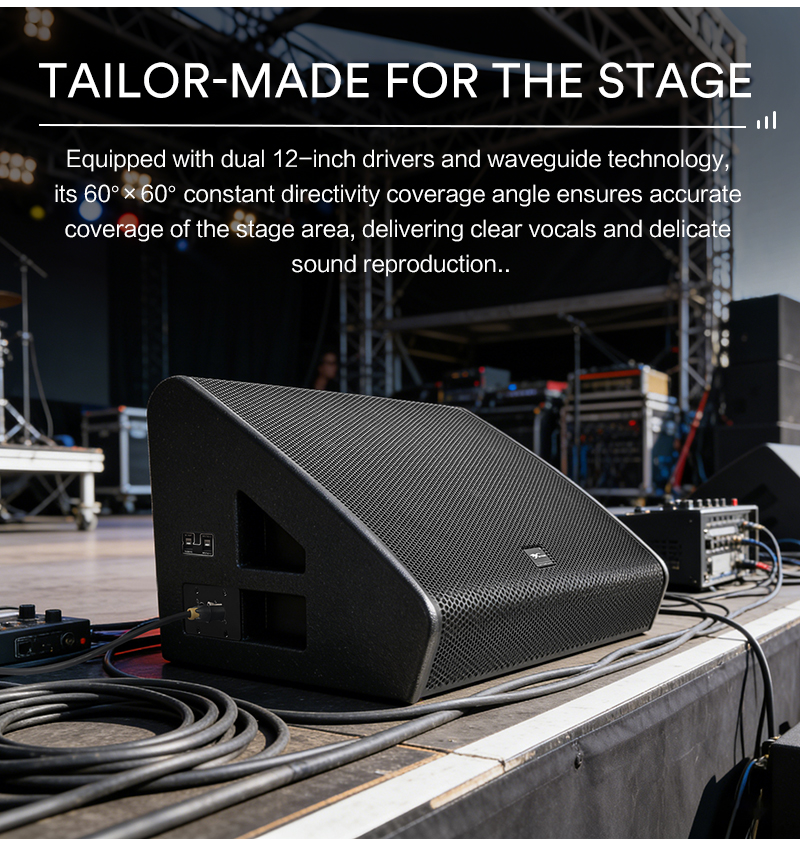

• 60°x60° High Frequency Waveguide featuring Image Control Waveguide Technology
• Single-Channel (Passive) and Dual-Channel (Bi-Amp) operation Modes for maximum flexibility in system configuration and deployment

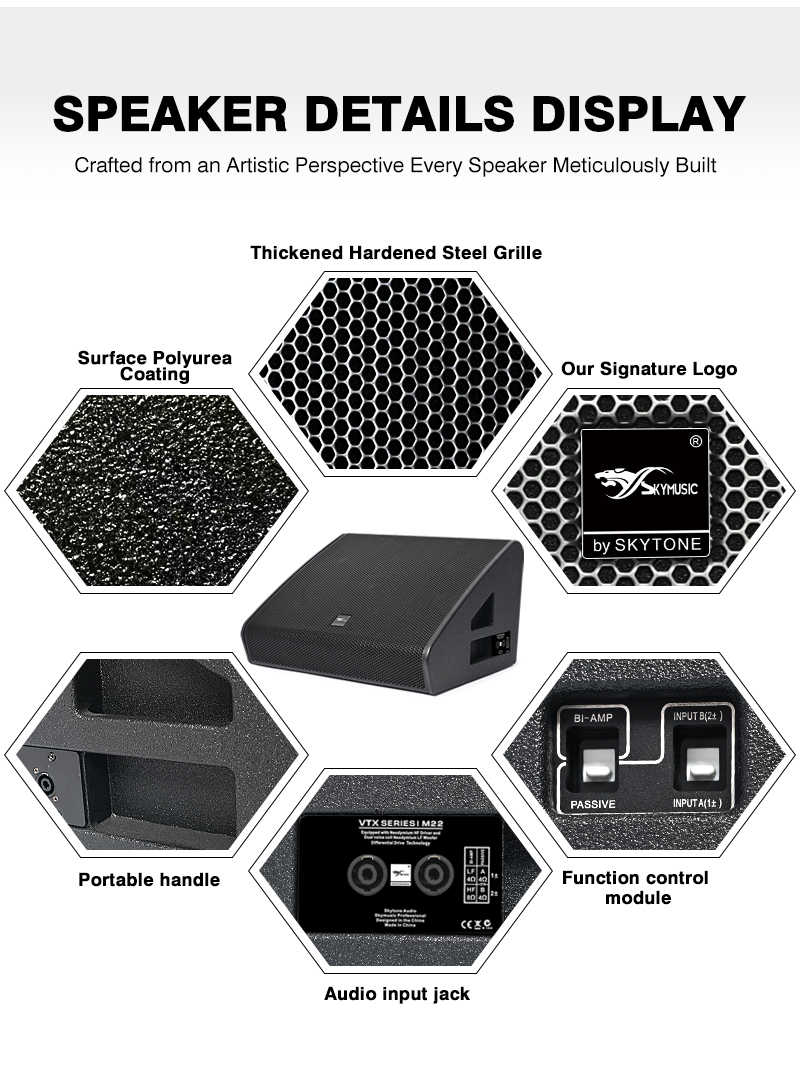

Mode Selection Switch
The VTX M22 feature a set of easily accessible selection switches.
Dual-Channel (Bi-Amp) Mode Single-Channel (Passive) Mode
Input A (Channel 1)
Single-Channel (Passive) Mode
Input B (Channel 2)
The first switch is a Mode Selection switch that allows for selecting between Single-Channel (Passive) and Dual-Channel (Bi-Amp)
operating modes.

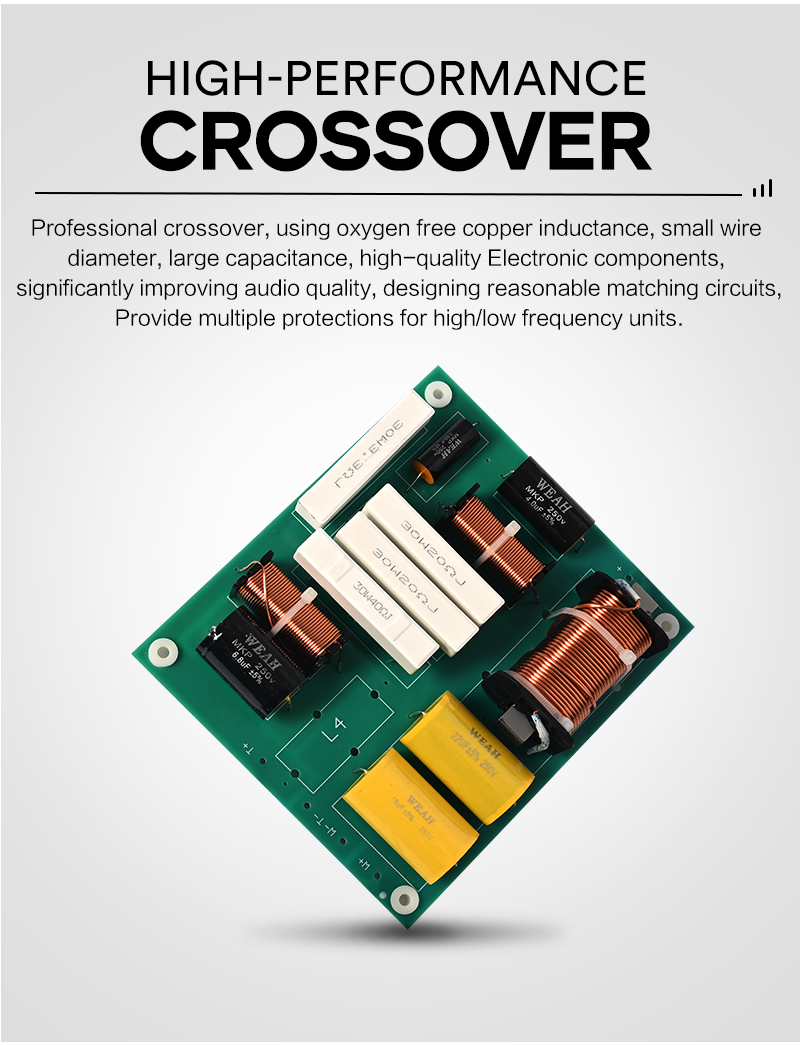

In Single-Channel (Passive) mode an internal crossover network is engaged that allows powering M Series monitors
with a single amplifier channel reducing the amplifier channel requirements. In Dual-Channel (Bi-Amp) mode, two amplifier
channels are used, one for the low frequency section and one for the high frequency section. Depending on the available amplifier channels, budget, or artists requirements a user can easily switch from one mode to the other.
The second switch is a Channel Selection switch that it is only active when the Mode Selection switch is set to Single-Channel (Passive)
mode. The channel selection switch allows for selecting which set of the NL4 Pins (Pin 1± or Pin 2±) are used for powering the monitor.
when the switch is set to Input A the a monitor is driven by Channel 1 and when the switch is set to Input B a monitor is driven by Channel 2.
VTX M22 Dimentions

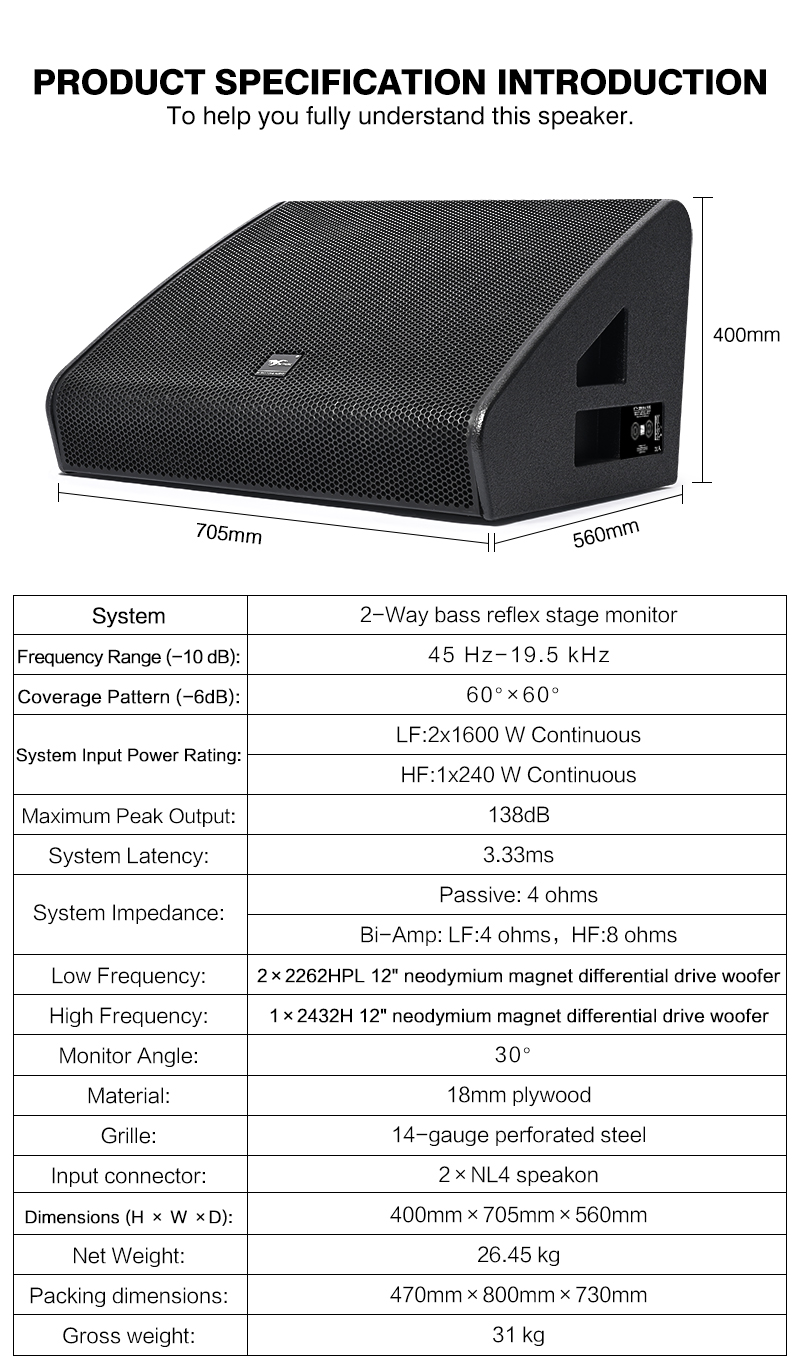

Specifications
: | |
System | |
Frequency Range (-10 dB): | 45 Hz - 19.5 kHz |
Coverage Pattern (-6dB) ： | 60°X 60° |
System Input Power Rating | |
LF: | 2x1600 W Continuous |
HF: | 1x240 W Continuous |
Maximum Peak Output： | 138dB |
System Latency： | 3.33ms |
System Impedance | |
Passive： | 4 ohms |
Active： | LF: 4 ohms，HF: 8 ohms |
Transducers | |
Low Frequency: | 2 x 2262HPL 12" neodymium magnet differential drive woofer |
High Frequency: | 1 x 2432H 3"neodymium magnet tweeter |
Enclosure | |
Monitor Angle | 30° |

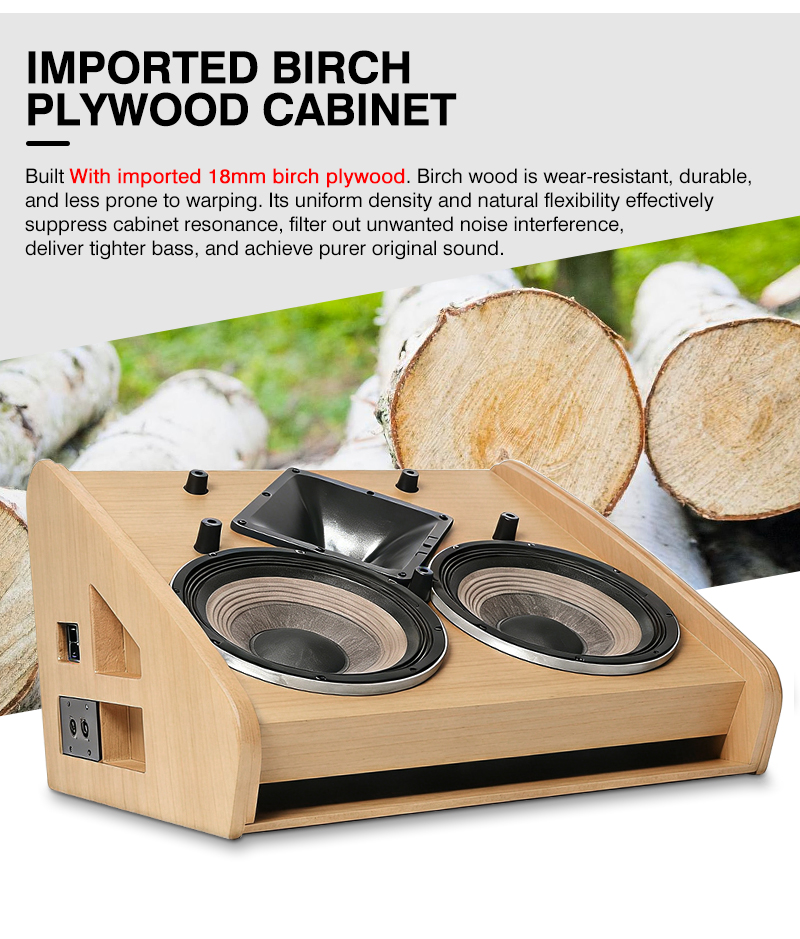

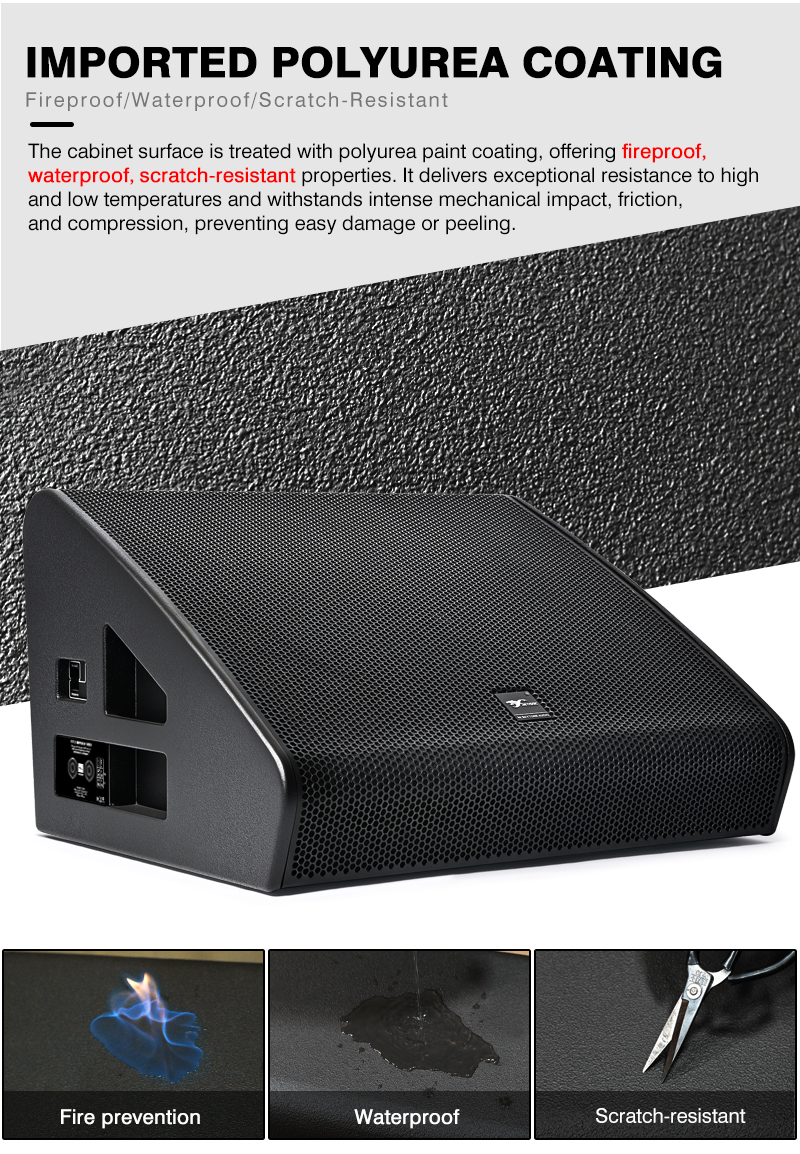

Material: | 18mm plywood |

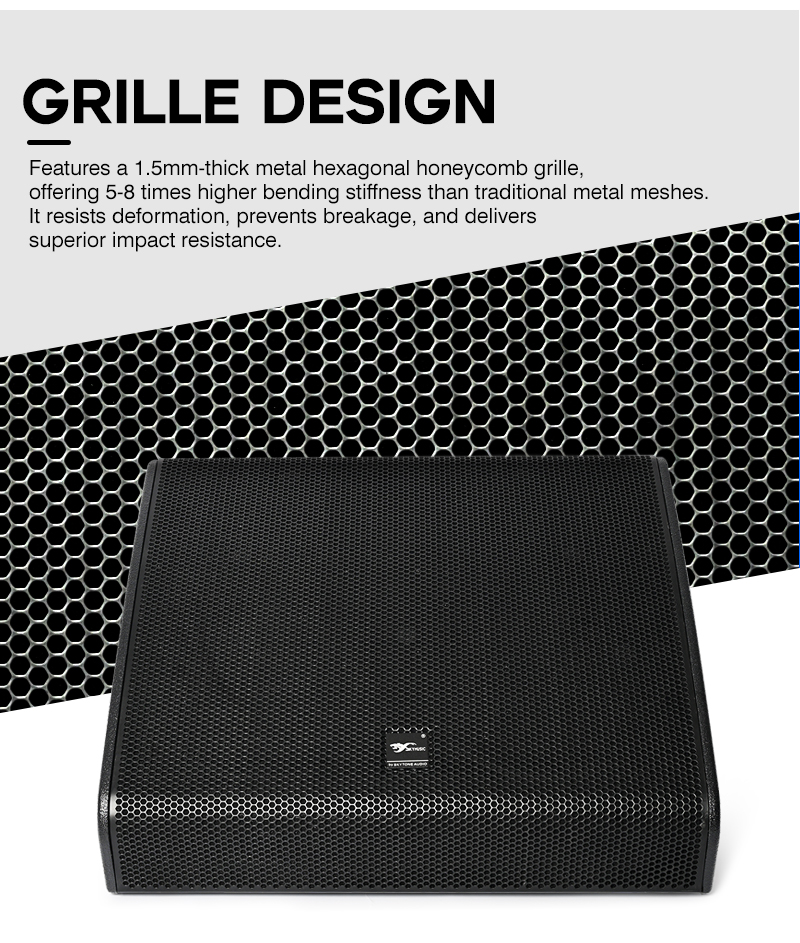

Grille: | 14-gauge perforated steel |
Input Connectors | |
Passive: | 2xNL4 speakon |
Dimensions (H x W x D): | 405 mm x 710mm x 505 mm |
Net Weight: | 26.45 kg |
