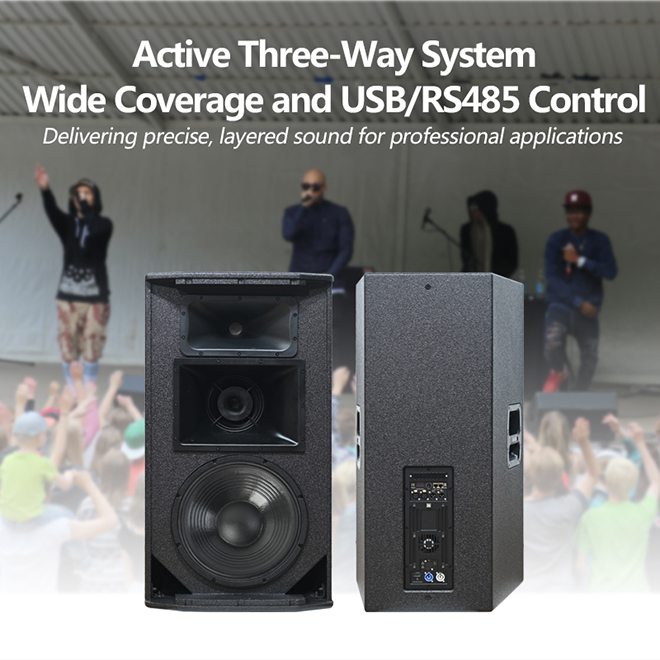

SRX835P 15-inch 3-Way Point-Source Powered Speaker
Power Handling: 800W/1600W/3200W
Frequency Range: 32Hz-20kHz
Max SPL: 130dB (Peak)
Coverage Pattern: 60°x40°
LF:1x15” woofer
MF:1X 8"mid range woofer
HF:1x 3" voice coil compression driver
Remote control:USB or RS485PC Network interface
Enclosure Material: 18mm plywood

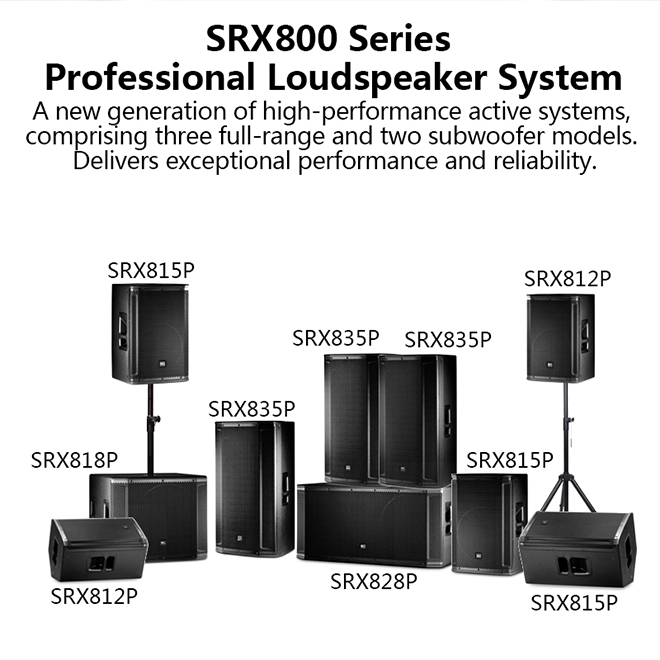

The SRX800 Series is the next generation high performance powered loudspeaker system comprising three full range and two subwoofer models with an array of features that elevate the SRX800 Series to the best in class of all competitive systems.

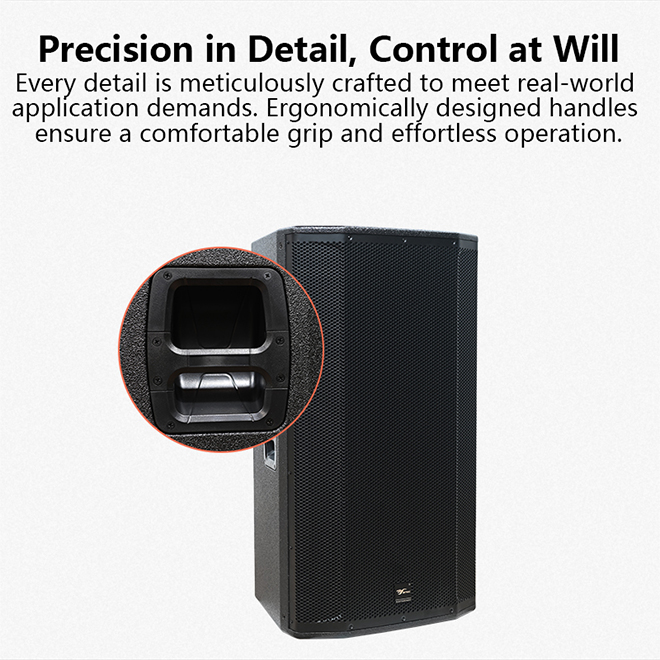

Every detail in the SRX800 Series was purposefully designed and thought through with full consideration for its intended use. Ergonomically designed handles support an easy, non-fatiguing grip for streamlined handling. M10 suspension points, indexed feet, and pole/tripod mounts support a wide, flexible array of configurations.
Handle

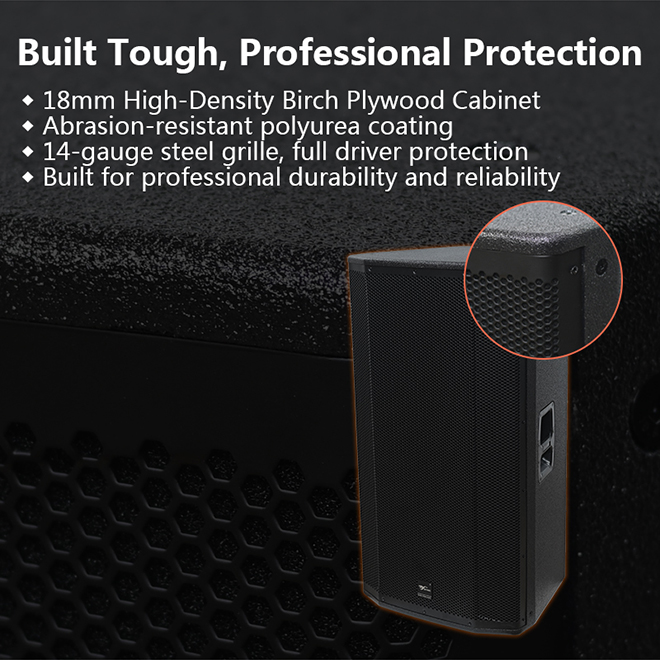

18mm plywood cabinet, Polyurea paint and Grille
1x 3"HF

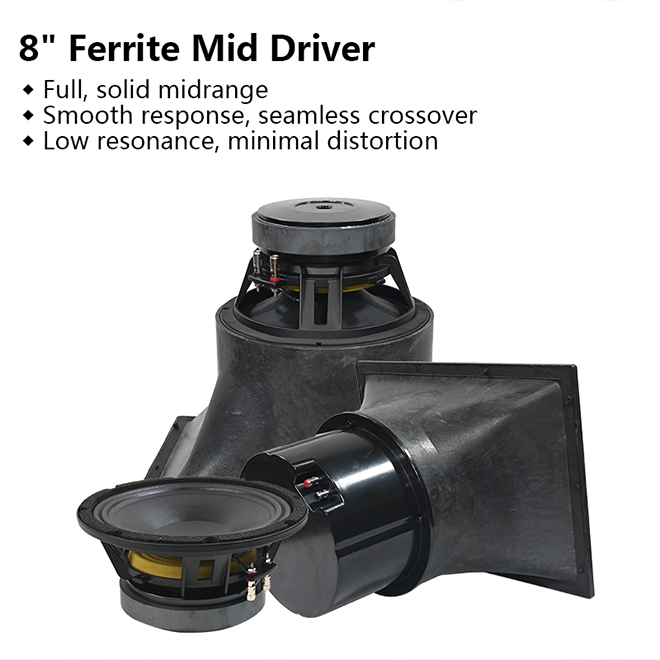

1x8" MF

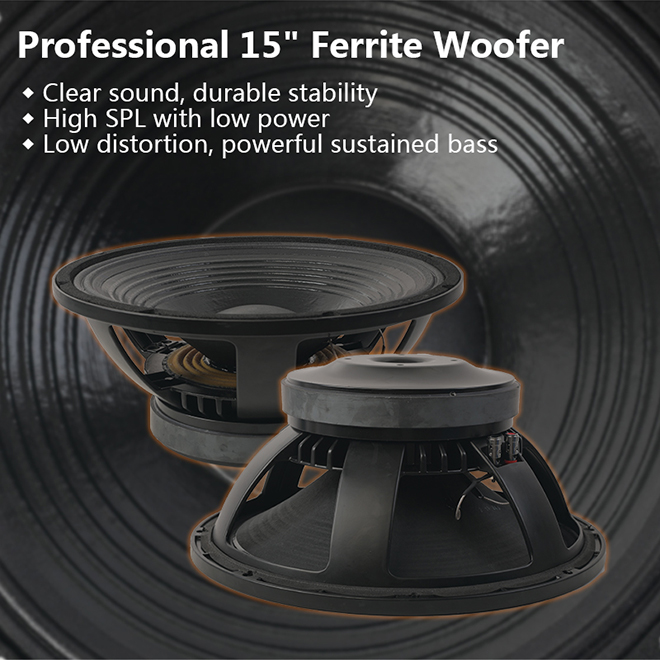

1x15" LF

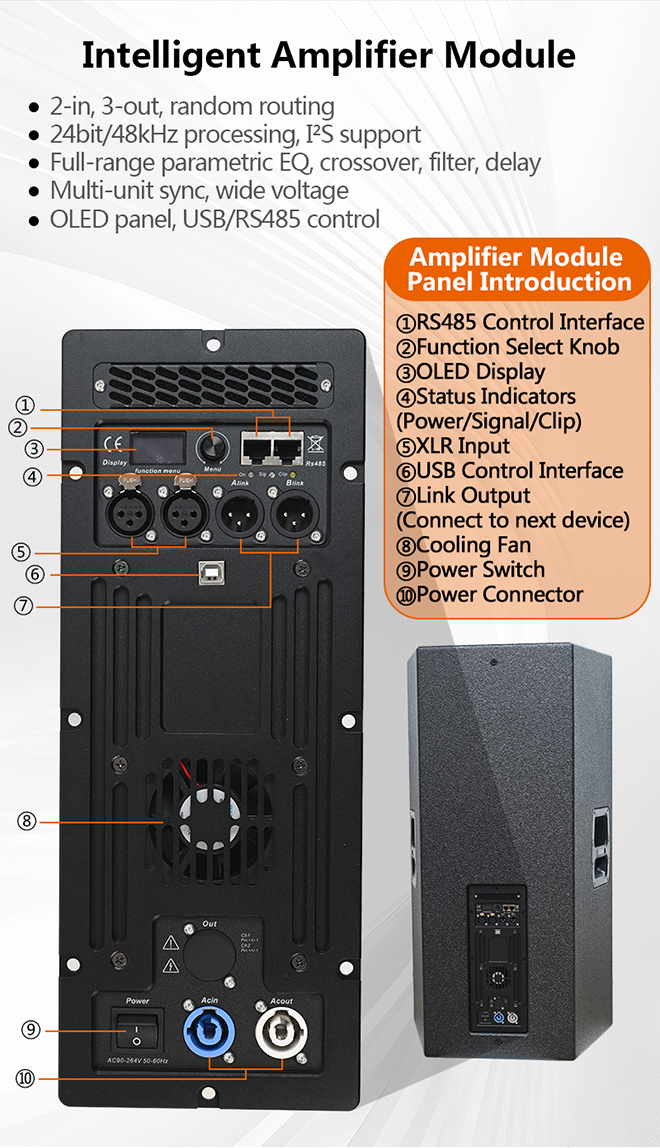

Analog 2 channel input,1 or 2 or 3 channel output.
24- bit Σ-delta AD/DA,48 KHZ sampling rate, I2S digital audio.
l/0 random routing and mixing, named channel definition.
Each channelat the input end has gain, phase, silence,noise gate,delay and 8 segments
of parameter equalization.
Each output has a separate limiter high and low pass filter, fullpass filter, slope and
type(Butterworth Linkwitz Bessel)Multiple options:-6dB -12dB -24dB -48dB The
frequency divider can be adjusted at any frequency point in the audio range.
Each output has an independent delay controller, the delay time range is 0ms-8ms, step
accurate to0.042ms.
External control through USB or RS485 PC remote control, 255 devices can be connected
and controlled.
Flexible data import and export function of the system.
Supports synchronous debugging of multiple devices.
Panel multifunctional OLED display and operation.
High efficiency Class D power amplifier post - stage circuit.
PFCwide voltage operating AC90-264V
Live performance systems. Mobile and fixed DJ systems.
Sound system rental and tour. Permanent installations.

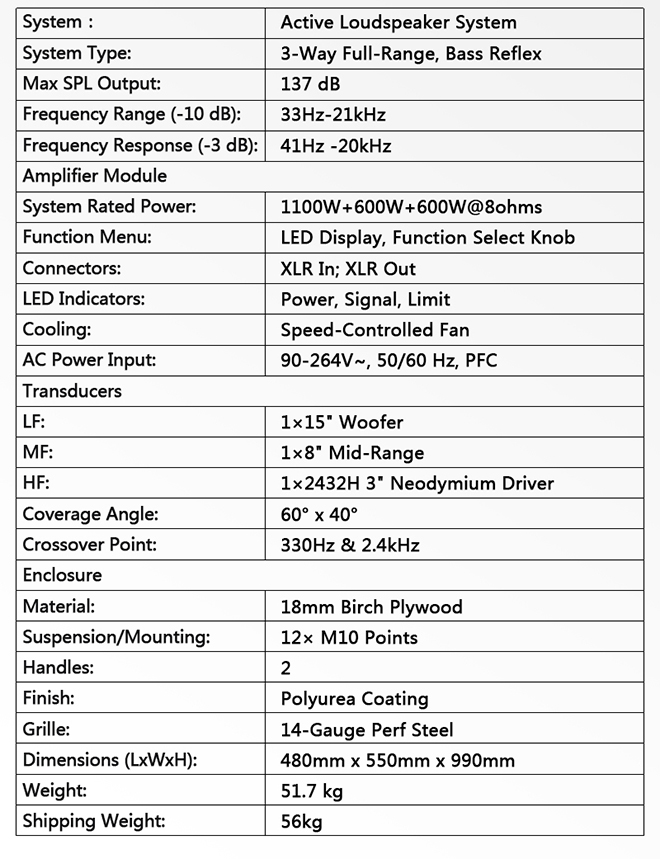

Specifications: | |
System: | |
System Type: | Self powered 15”, three-way, bass-reflex |
Maximum SPL Output: | 137 dB |
Frequency Range (-10 dB): | 33Hz-21kHz |
Frequency Response (-3 dB): | 41Hz -20kHz |
Amplifier: | |
System Power Rating: | 1100W+600W+600W@8ohms |
Function Menu | LED Display,Function selection knob |
Connectors: | XLR input; XLR Output |
LED Indicators: | Power on, Signal, Clip |
Cooling: | On-Demand variable speed fan |
AC Power Input: | PFCwide voltage operating AC90-264V~ 50/60 Hz |
Speaker: | |
LF Driver: | 1X15" woofer |
MF Driver: | 1X 8"mid range woofer |

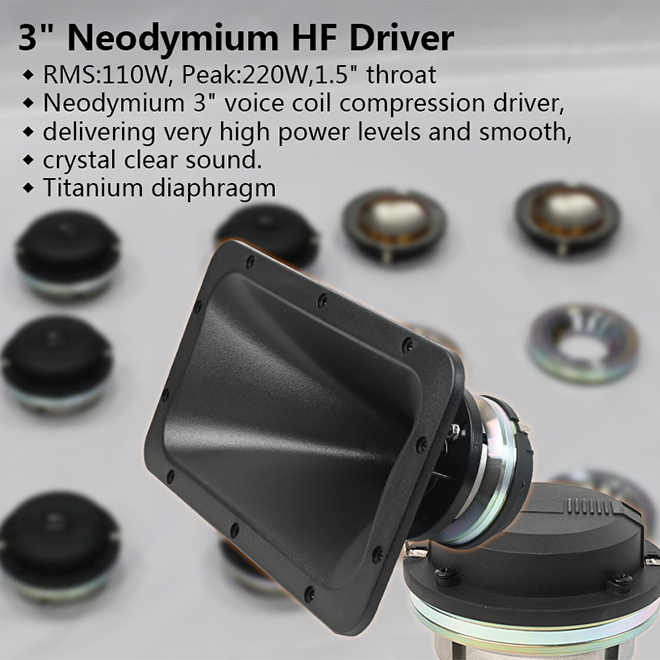

HF Driver: | 1X2432H 3"neodymium magnet tweeter |
Coverage Pattern: | 60° x 40° |
Crossover Frequency: | 330Hz & 2.4kHz |
Enclosure: | |
Material: | 18mm plywood |
Monitor Angle: | 15° |
Suspension/Mounting: | 12 x M10 Suspension points |
Handles: | 2 |
Finish: | Polyurea paint |
Grille: | 14-gauge perforated steel |
Dimensions (L x W x H): | 480mm x 550mm x 990mm |
Weight: | 38.6 kg |
Shipping Weight: | 44.0 kg |
