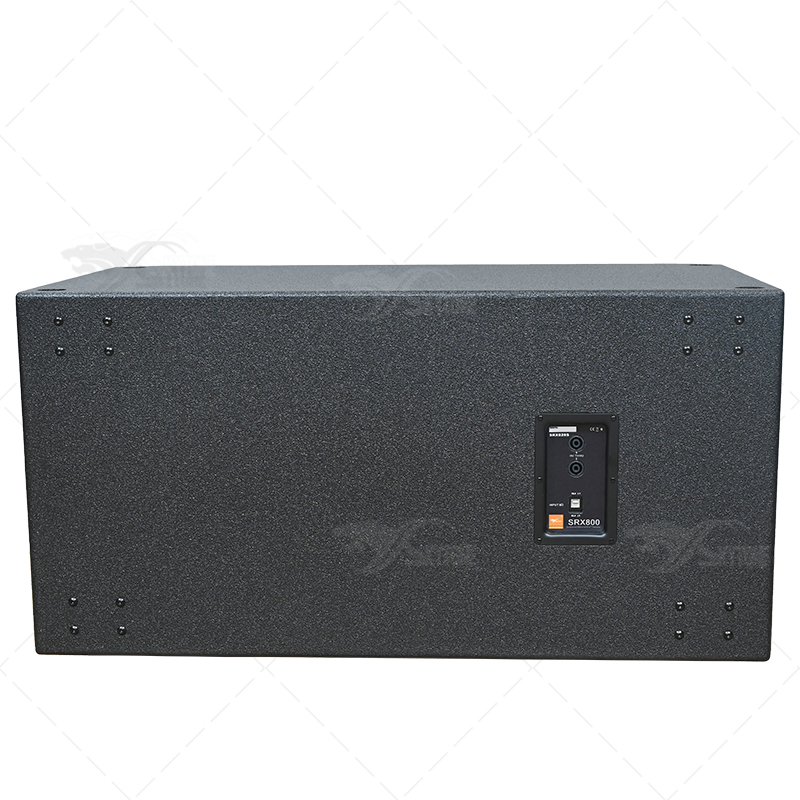

SRX828S Dual 18-inch Passive Subwoofer
Dual 18-inch Passive Subwoofer
SRX828S is a dual 18" subwoofer for concert, touring, or installed use. Featuring a wide stance for splaying top boxes, indexing feet for stacking in both the standard and cardioid position, and a 141dB max SPL, the SRX828S is an ideal solution for musicians, bands, and DJs, concert use, public speaking, or installations such as performance venues, corporate spaces, educational facilities or houses of worship.
SRX828S is a Dual 18-inch Passive Subwoofer
The SRX828S is a passive portable subwoofer in the SRX800 series from. It has been designed to deliver class leading performance in a variety of applications，including small and medium sized installations and tours. When used in conjunction with the SRX800 full range systems and other SRX800 subs, SRX828S in an integral part of a high performance, fully configurable loudspeaker system.
Feature
SRX828S Dual 18-inch Passive Subwoofer
Rugged, versatile enclosures
Select 18mm birch plywood
Finish:Polyurea paint
Grille:14-gauge perforated steel
Handle：8
Reserved screw holes for wheel installation
2x 18PZB100 super ferrite magnet 18" Woofer
Power Handling: 2000W/4000W/8000W
Frequency Range: 30Hz-150Hz
Frequency Response: 47Hz-150Hz
Max SPL: 135dB (Peak)
Amplification options: Passive
Applications
Live performance systems.Mobile and fixed DJ systems.
Sound system rental and tour.Permanent installations.
| Specifications | |
System: | |
System Type: | Passive dual 18”, subwoofer system |
Maximum SPL Output: | 141 dB |
Frequency Range (-10 dB): | 30Hz – 150Hz |
Frequency Response (-3 dB): | 47Hz – 120Hz |
Power: | |
System Power Rating: | 8000W Peak,4000W Program, 2000W Continuous |
Nominal Impedance: | 8 Ohm |
Connectors: | NL4 Input, NL4 Loop-thru (+/-1 or +/-2 Selectable) |
Operational Modes: | Passive |
Speaker: | |
LF Driver: | 2 x 18PZB100(18") super ferrite magnet woofer |
Crossover Frequency: | 80hz |
Enclosure: | |
Material: | 18mm plywood |
Handles: | 8 |
Finish: | Polyurea paint |
Grille: | 14-gauge perforated steel |
Dimensions (L x W x H): | 720mm x 1240mm x 570mm |
Weight: | 62.1 kg |
